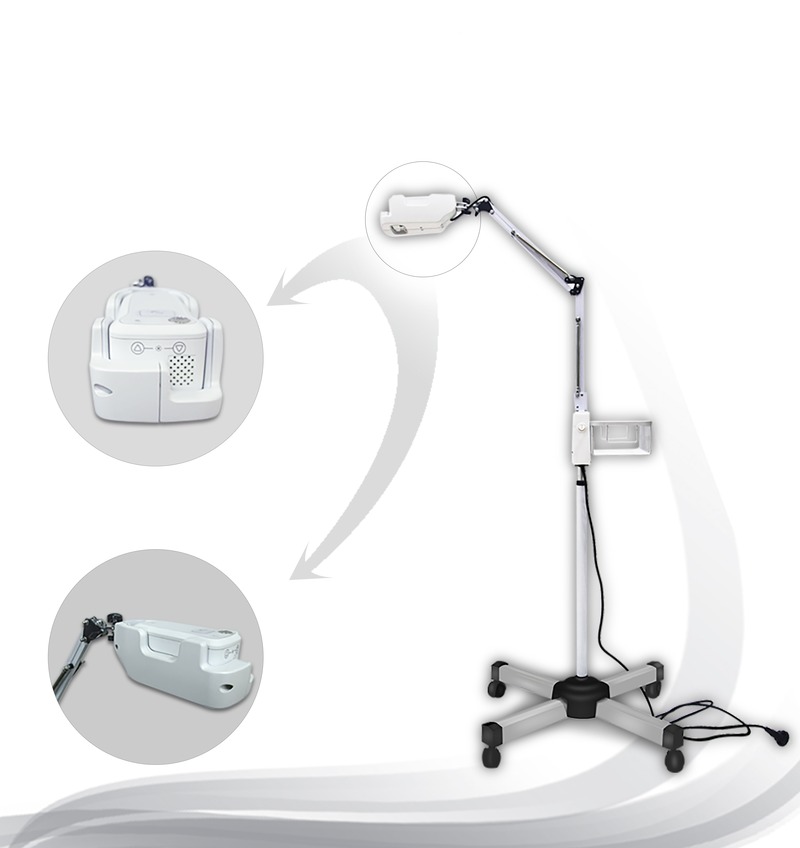

Bracket Vein Finder Mobile Stand Vein Detector Blood vessel monitor
Detailed Characteristics
1) Handheld, non-contact vein finder used in venipuncture, for displaying veins beneath the surface
2) Use safe infrared light source and enhanced light source both, no laser, no radiation
3) Two working modes(normal & inverse);
4) Each mode has 7 different colors image clear and accurate;
5) Each color has 4 levels light strength;
6) No patient contact, no need to be sterilized after every use
7) Easy to learn and use, just turn it on to display the veins beneath the skin
8) Mobile Trolley for convenient use
9) Also hands-free option, can be converted from hand held to hands-free quickly and easily
10) Usual Rechargeable 18650 Lithium battery, can get on markets easily and can be taken out.
11) Works in light or dark lit environments
12) With Sleeping mode to save energy
13)Suitable package for shipping to overseas countries;
14) With US & Chinese Patents;
15) With CE & ISO13485 certificate.
| Effective positive suggested projection distance range | 25cm~35cm; |
| Light projection | 300lux~1000lux |
| Active irradiation contains wavelength light | 750nm~980nm |
| Electrical source | lithium ion polymer batteries |
| Service voltage | d.c. 3.0V~4.2V |
| Main Part Net weight | 0.28±0.02kg, Whole Set N.W. 8kg; G.W. about 10kg |
| Prevent into the liquid level | IPX0 |
| Resolution ratio | 854*480 pixel |
| Projecting image processing speed | 30fps |
| LED light lamp life | about 100,000 hours |
| Battery charging full time | about 2 hours |
| Battery continuous working time | about 2.5 hours |
