Factory direct medical use portable vein finder

1.0 Sets
MOQ
Factory direct medical use portable vein finder
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Bio-Separation System
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
Product Name: Hematology Analyzer
Application: Hosipital
Item: Medical Blood
Keywords: Vein Finder
Function: Detection Of Venous Vessels
Color: 7 Colors Available
Infrared Detection Depth: 8mm
Best Detection Distance: 15-25cm
Weight: 280g
Size: 20*6*6.5cm
Basic Infomation
Payment & Shipping Terms
Product Description
Contact customer service
What is VEIN FINDER

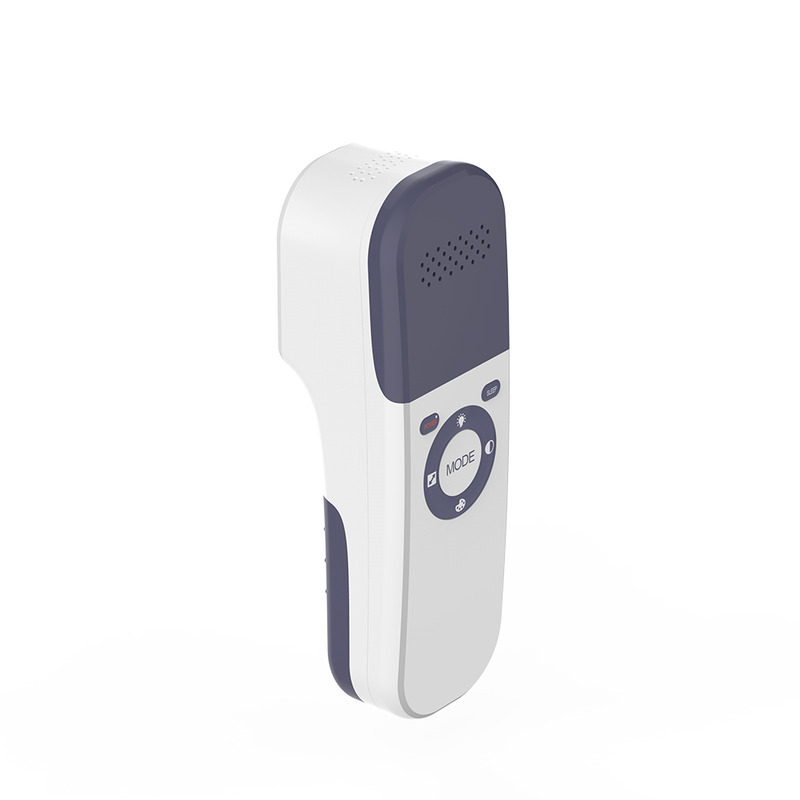

It is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple application situations. Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain. This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.
Vien Finder Description
Technical Parameter
Infrared light detection without harm to human body
Infrared detection depth
8mm
Best detection distance
15-25cm
Accuracy of blood vessel position
±0.5mm
Accuracy of blood vessel resolution
±0.5mm
Low working noise
≤40Bp
Power supply of charging
5V 2.0A, 100V-240V 50Hz-60Hz
Weight
280g
Size
20*6*6.5cm
Optional
Vein finder is portable machine. And the optional is table stand and mobile stand.
Use and Operation
Hold the device from 15 to 25 cm over the surface of the skin. Scan the area of interest to view. Once a vein is selected, make sure the vein display light is centered directly above the vein’s center line. Tilting the device to either side of the vein will offset the projected vein from its true location beneath the skin. You can often enhance display quality by slightly adjusting the height and angle to the skin. In particular, moving the device closer or further from the skin can help bring additional veins into view, depending on the patient’s vasculature, room lighting, and depth of the veins. While the vein display light is on, shine the device over the patient’s skin. You can do this before palpation, use sport mode scanning quickly over the skin to help narrow down possible locations. After confirming suitable vein location, you can change to enhance mode to find the deep veins. After assessing the patient’s vasculature, confirm the site for your procedure by verifying the location and suitability of the vein using normal medical techniques and good medical judgment, such as vein visualization, palpation, and other medical techniques.
