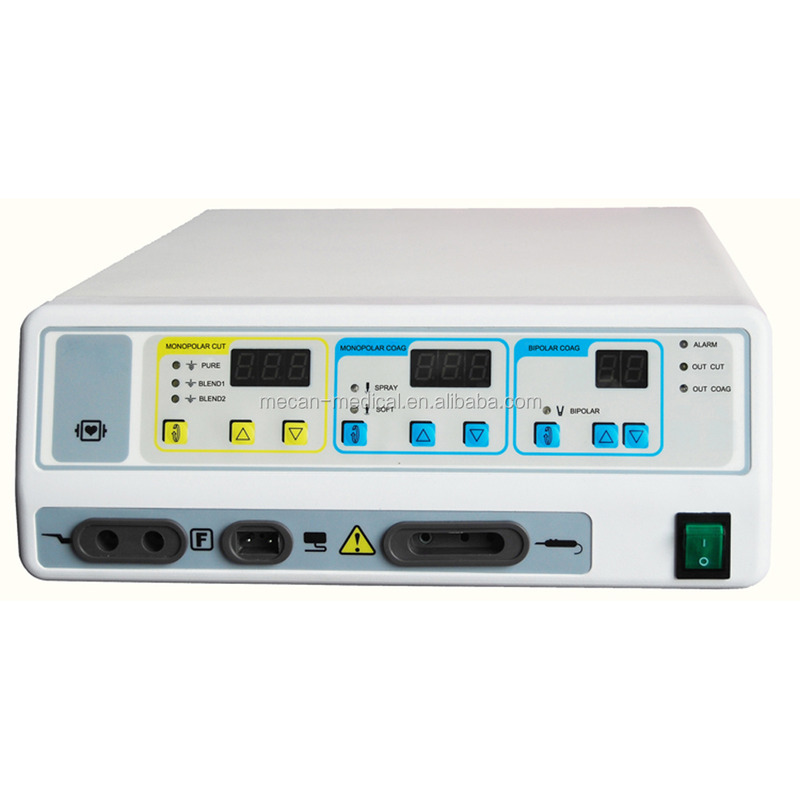

Model:MC-2000IS
1.Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
2.Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
3.Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.
4.Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
5.Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6.Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
7.The unit always remember the last setting when it turned off.
8.Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
9.Both hand and foot controlled.
10.The ESU unit can be connected with laparoscope and endoscope, etc.
11.Protection against over-voltage and over-current.
12.Defibrillation protected.
13.Meets the requirements of international safety standards EN60601-1 and EN60601-2.
14.Mounted on a 4 wheels cart(optional).
Mono-polar Cut | Pure cut:1W~350W( Load 800Ω) |
Blend1:1W~200W(Load 800Ω) | |
Blend2:1W~250W(Load 800Ω) | |
Mono-polar Coag | Spray Coag:1W~80W( Load 800Ω) |
Soft Coag:1W~120W( Load 800Ω) | |
Bipolar | Bipolar Coagulation: 1W~70W( Load 200Ω) |
Power Consumption | ≤1100VA |
Power | 220V±22V, 50Hz±1Hz(110V±11V, 60Hz) |
Operating frequency | 512KHz |
Power rating | 1100VA±10% |
Main unit | 1 set |
Electrosurgical Pencil | 5 pcs |
Electrosurgical Pad | 10 pcs |
Electrosurgical pad cable | 1 pc |
Footswitch | 1 set |
Bipolar Forceps | 1 pc |
Bipolar forceps cable | 1 pc |
