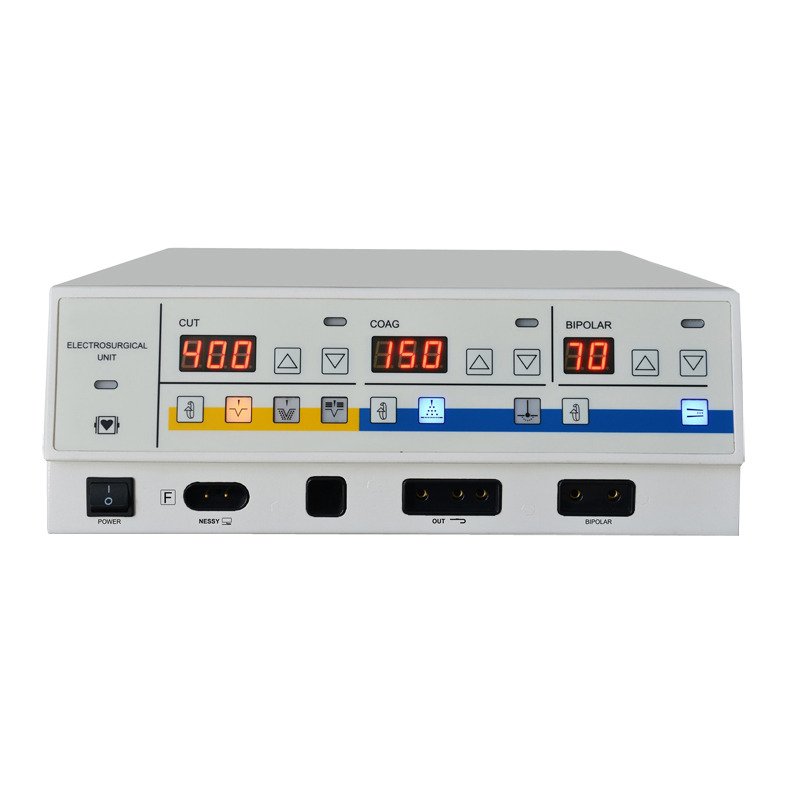

Surgical Metal Electrocautery Cautery Machine for Gynecology

What are features of our surgical cautery machine?

1.With high performance neutral electrode contact inspection system,system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

2.Owns memory function, reserves the last time used data.

3.High definition large LED Indication.

4.Main unit has automatic monitoring function and mistake indication function.

5.Automatic compensation function stabilize output power, make depletion to its lowest.

6.Can cut underwater, including organic cut In rich fat area.

What is specification of cautery machine for gyn?

Six output mode

Technical Parameters

a) Ambient temp. range: 5-40℃

b) Relative humidity range:≤80

c) Atmospheric Pressure Range: 86.0-106.0kpa

d) Power:220V±22V, 50Hz±1

e) Operating Freq.: 330-460kHz

f) Reted power:1100VA±10%

g) Type: CF

h) Power Consumption: ≤1100VA (Cut function 400)

Transportation and storage

a) Ambient temp. range:-40℃ to 55℃

b) Relative humidity: ≤95%

c) Atmospheric pressure:500hpa-1060hpa

d) Product size:365*330*125mm

e) Net weight:6.5 kg

f) Gross weight:10.5 kg

g) Packing size:46*42*30cm

What is application of our medical cautery machine?

Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.

1.Cut: Pure cut, can make easy operation for any organic, tissue, texture, the effect is refine cut, no escharosis on the surface.

2.Blend 1: The effect is cut with tiny coagulation;

3.Blend 2: Can use this function together with Endoscope, the effect is offering a better coagulation during cut;

4.Electro Coag 1: Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic.

5.Electro Coag 2: Called soft electrocoagulation, or called Point coagulation, faster coagulation, larger effect area, Can use this function together with Endoscope;

6.Bipolar Coag: Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can prevent organic's adhesion.

What is standard configuration of our cautery machine?
