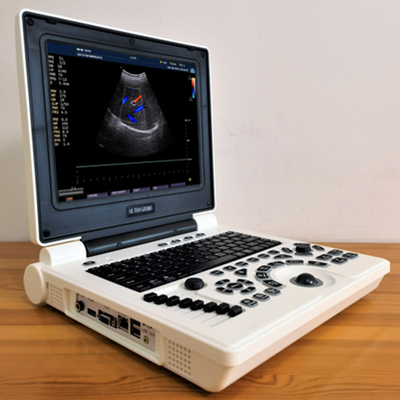

ZK-CD-LT003C Laptop Color Doppler System
Multi-application: abdomen, OB/GYN, small parts, peripheral vessels, urology, cardiac, rectum, pediatric, orthopedic, galactophore, intra-operative, ultrasound guided biopsy.
An Excellent Entry Level laptop Color Doppler Machine
ZK-CD-LT003C is an excellent general purpose color Doppler ultrasound diagnostic system. Based on our leading digital ultrasound technology, ZK-CD-LT003C offers decent 2D images with THI, excellent CFM images, as well as Doppler imaging modes such as CFM, PW, PDI, etc.
Continuous high-precision DBF
- High resolution imaging
Parallel scanning
- Faster 2D frame rate
PC platform / Windows 7 Embedded O/S
- Simple, direct and user-friendly workflow
- Customized PC motherboard ensures system stability and reliability
- Write protection of ultrasound control program, safe from virus attack and power outage
- Operation system restoration by one click
Complete Digital Solution
- Digital core module with DBF
- Digital display with DVI, enabling enhanced screen display
- Digital printing, enabling clearer printing with no need of adjustment
Transducer
- Self-owed transducer workshop
- Multi-frequency transducer series
- Max frequency up to 12MHz
Multi-language Interface
- English
- French
- Spanish
- Polish
- More to come
Printing
- Direct printing by one click
- PC and video printers supported
- Color printers supported
Technical Specifications:
General Descriptions
Imaging mode: B B/B B+M M B/PW CFM PW B+CFM+PWD PDI
Gray scale: 256
Display: 12" high-resolution non-interlaced monitor, special for medical imaging
Transducer frequency: 2.0 ~ 10MHz
Transducer connector: 2
Imaging Technology:
Continuous High-precision Digital Beam-former
Dynamic Frequency Integration Imaging
High-precision Dynamic Receiving Focus
Super Wide-band Imaging Technology
Self-adaptive Image Optimization Processing
Multi-beam Imaging
Self-adaptive Vascular Imaging
Self-adaptive Doppler Imaging
THI (Tissue Harmonic Imaging)
Image Processing
Pre-processing: 8-segment TGC
gross gain
dynamic range
gray map
smooth
acoustic power adjustment
scanning angle selection
Post-processing:
edge enhancement
frame correlation
line correlation
γ-correction
contrast
brightness, etc.
Measurement & Calculation
B-mode: distance, circumference, area, volume, angle, residual urine volume, histogram, profile
M-mode: distance, time, velocity, heart rate
D-mode: Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, VI, PI, RI, etc
Software packages:
GYN uterus, endometrium, ovary, cervix, ovarian follicle
OB:
GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc
Cardiac:
M. Simpson, B-EF,M-E (Pombo, Gibson,Teichholz), Diameter Function, PV flow, AV-Area, B-LV/Ao, M-LV/Ao, MV Regurg, etc
Urology:
volume of prostate, volume of bladder, volume of urine, volume of trans zone, Hip J.Angle (hip joint dislocation in neo-natal and babies),slice v, etc.
Small Parts and Peripheral Vessels
vascular cross-sectional area, heart rate, stroke volume, flow per unit time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.
Others
Peripheral port: USB port 2 / DICOM 1 / VGA port 1 / HDMI 1
Power supply: 100V - 240V, 50/60HZ 19V/3A DC Adapter
Standard Configuration: |
l ZK-CD-LT003C main unit l 12" high - definition LED monitor l Two activated transducer connectors l Min. 300-frames of Cine Loop l B / B+B / 4B / B+M / B-steer (note) / Color Doppler (CFM) / l Power Doppler (PDI) / Pulsed Wave Doppler (PWD) / B+PWD (Duplex) l B+CFM+PWD (Triplex) / Tissue Harmonic Imaging (THI) / Auto IMT l SRI (Speckle Reduction Imaging) l One Click Restoration of O/S l 2 USB ports & one HDMI & one Audio out & VGA & DICOM 3.0 l Panoramic zoom l Measurement & calculation software packages l Electronic convex array transducer: CA3.5MHz/R50 (2.0-6.0MHz) l Battery life: 90 min (actual battery life will vary depending on scan mode) |
Options: |
l Electronic convex array transducer: CA3.5MHz/R60 (2.0-6.0MHz) |
l Electronic linear array transducer: LA7.5MHz/L40 (5.0-10.0MHz) |
l Electronic trans-vaginal transducer:EV6.5MHz/R10 (4.0-10.0MHz) |
l Electronic micro convex array transducer:MC3.5MHz/R20 (2.0-5.0MHz) |
l Electronic linear rectal transducer: LA7.5MHz/L40 (5.0-10.0MHz) |
l Needle-guided brackets |
l Footswitch |
