Home /Products/Medical Cautery Machine/Medical Examination Tools High Quality Surgical Ablation Cautery Machine Use

Medical Examination Tools High Quality Surgical Ablation Cautery Machine Use

1.0 Sets
MOQ
Medical Examination Tools High Quality Surgical Ablation Cautery Machine Use
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ECO-200G
Warranty: 2 Years
After-sale Service: Onsite Training
Instrument Classification: Class III
Properties: Medical Polymer Materials & Products, The Basis Of Surgical Instruments
Product Name: Medical
Color: Green
Package: 1pcs/package
Application: Medical Examination
Function: Medical Health Services
Usage: Hospital Medical
MOQ: 1 Piece
Payment Term: T/T
Brand: ECO
Type: Surgical Instrument
Basic Infomation
Model Number: ECO-200G
Payment & Shipping Terms
Supply Ability: 100 Set/Sets per Week
Product Description
Product Description
The Microwave Therapeutic System is an electricity (AC-powered) device intended to generate microwave energy for localized non-vascular soft-tissue ablation, typically to treat tumors and/or hydatid cysts. The device connects via a delivery cable to the Disposable Microwave Therapeutic Antennas for delivery of microwaves to the target tissues. It is intended to be used in percutaneous, laparoscopic, or open surgery procedures to ablate tissue typically in the liver, lung, kidney, thyroid, uterine, breast and bone.

1. Product name:
Microwave Therapeutic System 2. Intended use:
The Microwave Therapeutic System is an electricity (AC-powered) device intended to generate microwave energy for localized non-vascular soft-tissue ablation, typically to treat tumors and/or hydatid cysts. The device connects via a delivery cable to the Disposable Microwave Therapeutic Antennas for delivery of microwaves to the target tissues. It is intended to be used in percutaneous, laparoscopic, or open surgery procedures to ablate tissue typically in the liver, lung, and kidney. 3. Principles:
Microwave therapeutic system produce heat by using polar molecules of tissue (mainly for the water molecules) with microwave frequency high-speed rotation and mutual friction. It features instantaneous coagulation from inner to outside, low temperature, clear edge of damage area, uniform heat area, and excellent haemostatic effect.

4. Technical parameters of model ECO-100E2 1) Working Frequency: 2450±20MHz; 2) Output Power: 0-150W in one channel, 0-125W in multiple channels; deviation: ±20%, continuously adjustable. 3) VSWR: ≤1.5 4) Treatment time: 0 ~ 30min, continuously adjustable, deviation ≤±1min. 5) Output mode: continuous and intermittent pulse. 6) Cooling temperature (0 ~ 50 ℃, deviation≤±1℃) 7) Input power:≤900VA+10%; 8) Microwave leakage: ≤2mW/cm2; Cold circulation system: 1. Pipe connections no leakage, 2. Cooling liquid Flow : 25mL / min ~ 60mL / min.

5. Mechanism of Microwave Ablation: 1) Thermal energy causes irreversible damage to organelles and proteins, ultimately generating tissue necrosis within solid tumors. 2) Besides, thermal energy ablates blood vessels around tumor, stopping blood supply and tumor metastasis. 3) Necrotic tissue gets fiberizing and slowly diminishes in size after MWA, activating immune function simultaneously.
6. How does MWA Compare with Traditional Methods ?
Treatment
Advantage
Limitation
Trend
MWA
Minimally invasive;
No toxic side effects; Target treatment
Inadequate popularity
New tumor treating method with rapid development
Surgery
Local radical treatment
Long recovery time;
Nonsurgical candidate
Popular
Chemotherapy
Systemic treatment
Toxic side effects
Popular
Radiotherapy
Local sensitive tumors
Toxic side effect;
Non-sensitive or advanced tumors
Highly involved with interventional treatments
Features
Benefits
Interactive touch screen user interface
User friendly
Integrated peristaltic pump
Continuous cooling capacity
Dual energy source generator available
2 antennas can be used simultaneously within one generator to coagulate-ablate very large or multiple lesions to save time
Real-time coolant temperature monitoring and display
Minimizes risk to non-targeted tissues along the shaft of the antenna
Pre-procedure cooling and microwave output self-test function
Ensures effectiveness and safety before starting the procedure
Independent thyroid ablation mode available
Effective MW treatment for benign nodules and malignant tumors of thyroid and parathyroid gland

  • Applications


Detailed Images

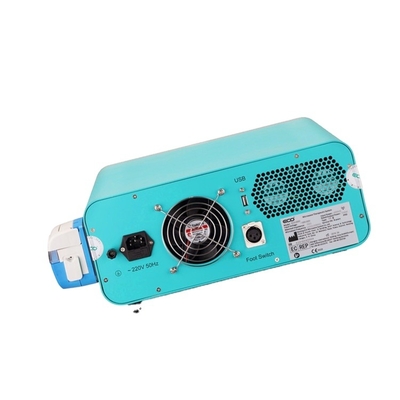

The system consists of microwave source, microwave radiator, control system, display system and temperature measurement system. A maximum of 1microwave source can be configured for each product.
Packing&Shipping
Company Profile
ECO Medical
Established in 2000, ECO is a leading manufacturer of medical instruments in China, which covers Microwave, High Frequency and Laser systems. With vision of “To Be No.1 in China and First-Class in the world”, and mission to help employees realize their self-worth and contribute to human health, ECO is trying every effort to deliver advanced technology and provide product solutions to healthcare industry at home and abroad.
Certifications
Exhibition
