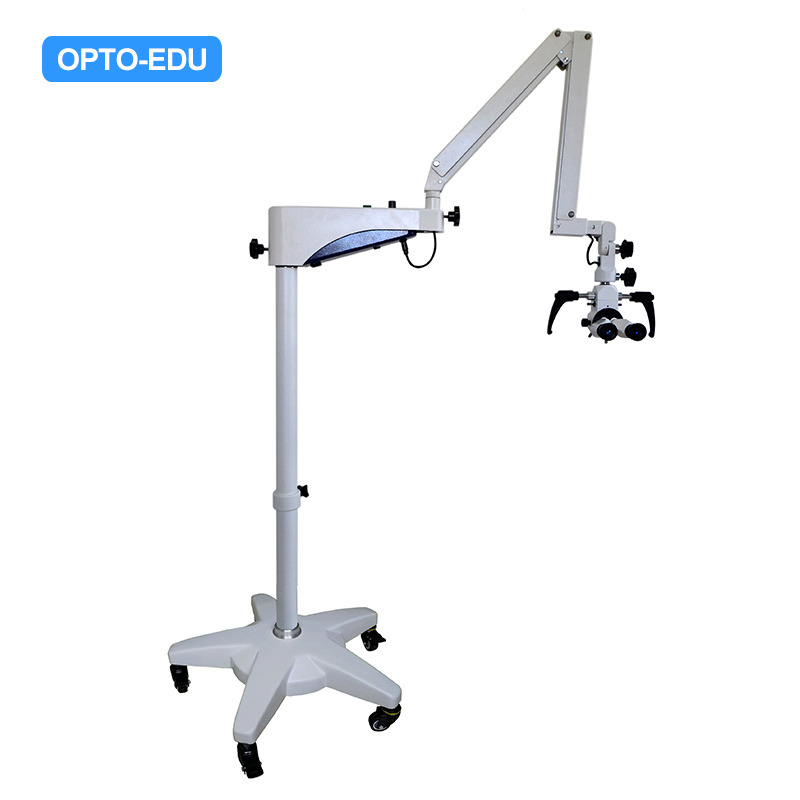

A41.1901 2.4X-12X Operating Microscope
A41.1901 Series Operating Microscopes use fibre-optic cable for coaxial illumination and have different working distance and magnification. They are featured for flexible handling and easy operation. They have found wide application in ophthalmology, gynecology, ear-nose-throat, surgery and orthopedics etc..
|
A41.1901 Series Of Operation Microscope Specification
|
|||||
|---|---|---|---|---|---|
|
Model |
A41.1901-A
|
A41.1901-B
|
A41.1901-C
|
A41.1901-CZ
|
A41.1901-D
|
| Binocular observation |
Straight
|
45º Tilted
|
Straight
|
45º Tilted
|
|
| Magnification of binocular |
6X
|
||||
|
Interpupillary distance
|
50mm-80mm |
||||
| Diopter |
±5D
|
||||
| Magnification changer |
3-step magnification change: 0.6X,1X,1.6X
|
||||
| Focal length of objective |
Two objectives: F=200 & F=300mm (M45x0.75mm)
|
||||
| Total magnification |
3X, 5X, 8X, 4.7X, 7.5X, 12X
|
||||
| Linear field |
60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
|
||||
| Beamsplitter |
No
|
||||
| Digital camera adapter | |||||
| Fine focusing range |
10mm
|
||||
| Filter |
Built-in green and yellow filters
|
||||
| Balancing arm |
2-part arm with universal joints
|
||||
| Illumination system |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
|
||||
| Customization power supply unit |
NO
|
Connect to the column of ENT unit
|
No
|
||
| Stand |
2-part column fitted on the five-star base with casters
|
Table mount clamp
|
|||
| Power supply |
AC100V-AC240V
|
||||
|
Optical Characteristics for A41.1901 Series Operation Microscope:
|
||||||||||||
| Focal length of objective |
F=200mm
|
F=250mm(optional)
|
F=300mm
|
F=400mm(optional)
|
||||||||
| Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
| Total magnification |
12X |
7.5X |
4.7X |
9.6X |
6X |
3.7X |
8X |
5X |
3X |
6X |
3.8X |
2.3X |
| Linear field (mm) |
15.8 |
25.3 |
40.6 |
19.7 |
31.6 |
50.7 |
23.6 |
37.9 |
60.8 |
31.5 |
50.5 |
81 |
| Exit pupil diameter (mm) |
1.04
|
1.66
|
1.04
|
1.66
|
1.04
|
1.66
|
1.04
|
1.66
|
||||
| Exit pupil distance (mm) |
15.3
|
|||||||||||
| Resolution (LP/mm) |
67 |
44.5 |
29.7 |
60 |
35.4 |
27 |
47.2 |
31.5 |
23.6 |
35 |
27 |
19.8 |
|
Optional Accessories
|
||
|
Objective Lens |
Objective F=250mm |
A52.1901-25 |
|
Objective Lens |
Objective F=400mm |
A52.1901-4 |
|
Wall Mount Bracket |
A41.1901-C |
|
