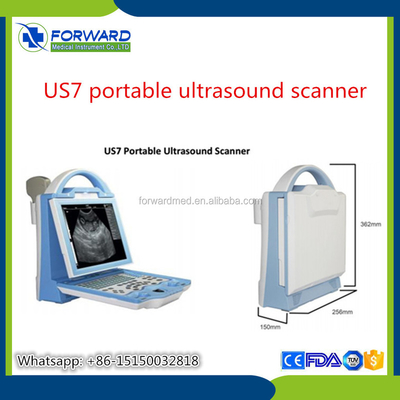

Cheaper than mindray ultrasound dp 10 digital laptop ultrasound machine
The technical parameters our US7 ultrasound equipment:
1. 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
2. Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
3. Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
4. Two probe sockets, auto-identify different optional probe;
5. Body marks:total 64 kinds body marks indicating probe position;
6. Display mode:B,2B,4B ,B/M,M ;
7. Adjustable depth: 10 grades, max depth to 236mm;
8. Gain:0~127dB;
9. Contrast:27~90dB;
10. Gray scale:256;
11. 8 steps intelligent TGC;
12. Frame frequency: 30 frames /second
13. 8 kinds pseudo colors;
14. Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.
15. Cine loop:256 frames;
16. Abundant functions:
Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
the gravel software package with real-time position line measurement;
Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement;
Cardio measurement:Depth, slope, heart rate, cycle;
Gynecology measurement and analysis: gynecology general measurement and gynecology report.
OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report;
Urology measurement and analysis: residual urine volume, prostate volume, and urology report.
17. Dual TV output: PAL/NTSC, can connect video printer when necessary
Standard Configuration of ultrasound equipment:
| Main unit 1pc |
| Power supply adaptor 1pc |
| Reticle 1pc |
| probe sockets 2pc |
| 6.5MHz linear rectal probe 1pc |
