Home /Products/Bipolar Cautery Machine/Cut and Bipolar Electrosurgical Coag High Frequency TURP Unit 400 Watt Plasma TURP Bipolar Saline Cautery Maker

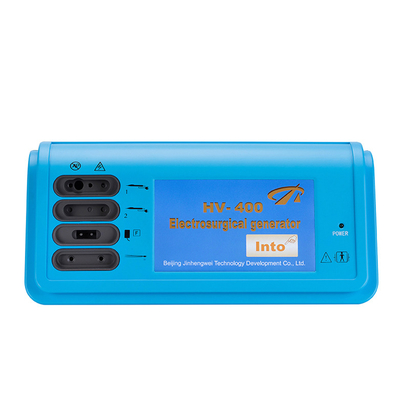

Cut and Bipolar Electrosurgical Coag High Frequency TURP Unit 400 Watt Plasma TURP Bipolar Saline Cautery Maker

1 Set
MOQ
$8,500.00(1 - 9 Sets) $8,000.00(10 - 49 Sets) $7,600.00(>=50 Sets)
Price
Cut and Bipolar Electrosurgical Coag High Frequency TURP Unit 400 Watt Plasma TURP Bipolar Saline Cautery Maker
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HV-400 Plus, HV-400 Plus
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: GB15979-2002
Function:: Cut And Coag
Main Frequency: 512KHz
Power Supply: 110~220V/50~60Hz
Power Readouts: Within ±20% Or 5W
High Frequency Leaekag: Mono<150mA;Bip<60mA
Gross Weight: 17kg
Basic Infomation
Certification: ce
Model Number: HV-400 Plus, HV-400 Plus
Payment & Shipping Terms
Packaging Details: standard medical packaging carton.
Supply Ability: 300 Set/Sets per Month
Product Description
Product Description
HV-400 Plus LigaSure Vessel sealing
Top-level and Multifunctional Electrosurgical Generator with Ligation
CE 0434
Surgical Equipment:High Frequency Electrosurgical Generator Unit
Application of Use
General Surgery; Gastroenterology,
Dermatology; Vascular Surgery;
Obstetrics and Gynecology;
Heart/Thoracic Surgery; ORL/ENT;
Minimally Invasive Surgery(MSI);
Cerebral surgery; Neurosurgery,
Orthopedics & Plastic Surgery;
Trans Urethral Resection (TUR) and etc.
Technical Features
Brand
Ahanvos
Item Name
High Frequency Electrosurgical Generator
Material
Stainless Steel
Main Frequency
512KHz
Max Output Power
400W
Application
Human/Veterinary Surgery
Power Supply
100~240V/50~60Hz
High Frequency Leaekag
Mono＜150mA;Bip＜60mA
Power readouts
within ±20% or 5W
Certificate
CE ISO

  • Intelligent Device System

Microprocessor controlled with a wide TFT LCD Touch Screen, clean image quality. The settings and working modes of operation are changed by touching icons on the screen, ensures the users with easy access to all functions, satisfying all the surgeries demands with safety, flexibility, reliability and convenience.
Characteristics Equipment are designed for conventional Electrosurgical procedures with the ability to automatically adjust, designed for various operations. Activation Designed to perform cutting and coagulation during surgical procedures, output activated by Handswitch or Footswitch REM(Return Electrode Monitoring) Return electrode (for Monopolar) with quality monitoring system(REM). This REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, at the same time with Audible and Visual Alarms, as well as real-time dynamic display of the contact quality on the screen between the negative plate and the patient’s skin.
Automatic Self-Test
When switch on the machine, it will start automatically self-test routine prior to operation.

Monopolar Cut -Multi Monopolar outlet, 3-pin (4mm) outlets and Laparoscopic Microphone head (4mm, 8mm ) outlet -Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect.

Two Pencils Work Simultaneously
It can meet the special surgeries like Heart bypass operation and etc,which ensure two users can operate respectively without interference.

Monopolar Coagulation -Different coagulation modes provides precise, moderate, enhanced, contact-less coagulation effects -Possibility of argon plasma coagulation.
Bipolar -Cut with different levels of haemostasis, urological cutting and etc -Coagulation with Forceps for contact coagulation without sparking

Automatic Start /Stop Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control for the operation.

Time Control Feature
There is time control feature under bipolar coag modes.Time output rang from 0.1 to 2.0 seconds,which can be used for much delicated surgeries like Neurosurgeries and etc.

TURP Functions
Both under Monopolar modes and Bipolar modes This mode is used in under water environment for surgery especial Resectoscopy,which removes the tissue in the prostate with kinetic plasma under saline liquid.

Pulse Output
Pulse Cut Technology provides control of cutting depth for critical dissections necessary for Endoscopic retrograde cholangiopancreatography(ERCP),which mainly for the Gastrointestinal(GI)range surgery. Pulse Coag Technology provides pulsing bursts of Coagulation energy for more control of hemostasis during the operations,which make sure less tissue carbonization.

Polypectomy Function
Special cutting modes necessary to remove polyps and the procedure of Papillotomy,alternating of cutting and coagulation enables achieving an optimal coagulation for this application and reduces the probability of bleeding.

Mastoid Cut Function
This function can be used for ENT surgeries and etc.

Endo-Cut Function
It produces pulse cutting perfect for endoscopy procedures under monopolar modes,which means alternations between cutting and coagulation stages,which can be used for the Gastroenterology.

Air-Beam Coag Function
A mode used for contact-free Coagulation of surfaces,it eliminates smoke and smell,ensure very shallow and wide coagulation,Necessary when there is a risk of perforation.

Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage.It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds,which ensuring the machine achieves optimum energy output levels quicker and more accurately-ensuring that only the precise voltage needed is safely delivered to each tissue type.
Ligasure Vessel Sealing(Seal-Safe)
With above mentioned Real-Time and instance response system,it enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation(Seal-safe modes).

Endoscopic Vessel Sealing(Endo-Safe)
Vessel sealing under water with endoscopic instrument
Memory Records Features
Memory program that allows customize settings for different interventions and surgeons.Now total from 0-99 memory locations can be available for user-defined settings,which make AHANVOS a versatile,indispensable companion in HF surgery.

Compatible with Argon Plasma Coagulation System
Compatible with Argon Generator,non-contact tissue,which can have very good effect for digestive surgery.

Optimum Smoke Evacuation System
AHANVOS Electrosurgical unit can be integrated with smoke Evacuation system,which will automatically trigger the smoke evacuation
when energy is activated.

Multilanguage Available
Language options:English,Spanish,Portuguese,Turkish and etc.

Upgrade Interface
USB/RS232 interface available to connect with computer, which allows remote problem detect as well as further software upgrade.
Packing and Delivery
Company Profile
Beijing Jinhengwei Technology development Co.,Ltd (Brand "AHANVOS”) is professional manufacturer in the design,research and development of Electrosurgical Generator and accessories.

Main products:HV-300 series and HV-400 series High Frequency Electrosurgical units and accessories such as:Monopolar ESU pencil,Monopolar ESU plate and cable;Two Button Footswitch, Bipolar Forceps and cable and etc,also the Smoke Evacuator for the Leep surgery.

Our company established in 2000,we have one team of experienced technical staffs and professors in this field,which makes our products passed by European CE0434, ISO 13485 and ISO 9001. AHANVOS is dedicated to provide the best quality and reliable machine to the customers,our aim is to become one of the leading manufacturers for Electrosurgical unit.
Machine Commissioning
Ahanvos Main Products
FAQ

Q: Are you a factory or a trading company ? A: We are a Chinese medical equipment manufacturer, All the products are made by us. Q: Can you accept OEM ? A: YES! We offer "Ahanvos" brand to you, But if you need we can also offer OEM service. Q: Which ares are your products usually sold to ? A: Our products usually exported to North America, South America, The Middle East, South-east, Asia, Europe and so on. Q: What's your delivery time ? A: Quantity below 10sets, the delivery time will be in 1 week. Q: Where are you ? A: Our address is Room NO.501 , 5/F Building, NO.27 YongWang Road, Daxing biomedical industrial base, Zhongguancun Science Park, Daxing District, Beijing, China.
