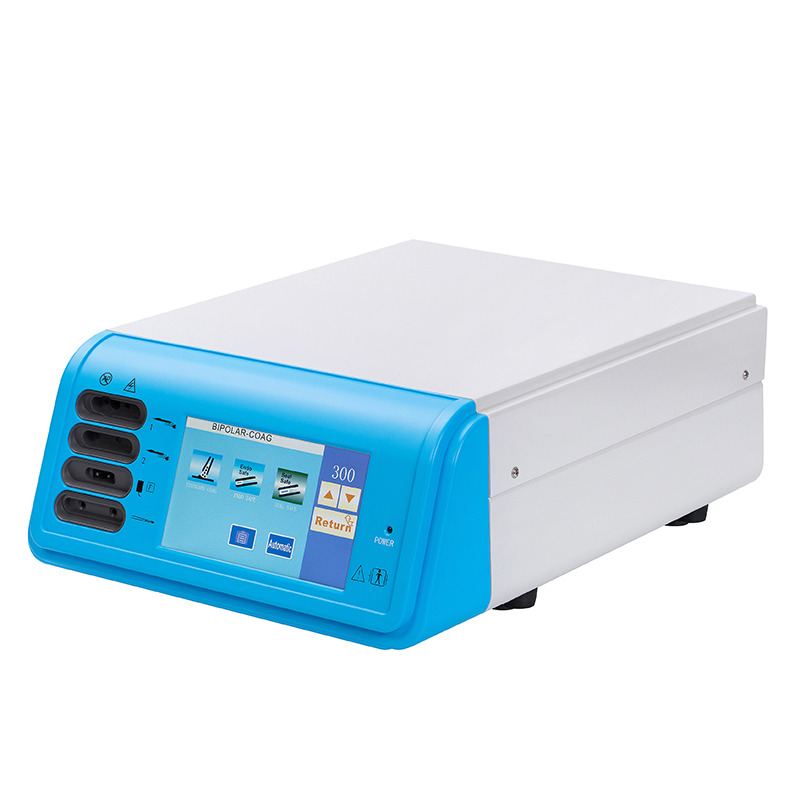

Metal Ligasure Surgical Device Electrosurgical Diathermy Machine Cautery Unit

2 Sets
MOQ
$4,500.00(2 - 9 Sets) $4,300.00(10 - 49 Sets) $4,150.00(>=50 Sets)
Price
Metal Ligasure Surgical Device Electrosurgical Diathermy Machine Cautery Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HV-300A Plus
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal
Shelf Life: 1years
Quality Certification: Ce, CE
Instrument Classification: Class III
Safety Standard: None
Properties: Abdominal Surgery Equipments
Type: Electrosurgical Generator
Dimension: 34*16*47cm
Main Frequency: 512KHz
Power Supply: 110~220V/50~60Hz
Power Readouts: Within ±10% Or 5W
High Frequency Leaekag: Mono<150mA;Bip<60mA
Basic Infomation
Certification: ce, CE
Model Number: HV-300A Plus
Payment & Shipping Terms
Packaging Details: standard medical packaging carton.
Product Description
Product Description
Ahanvos HV-300A Plus LigaSure Vessel sealing Electrosurgical Generator
Surgical Equipment:High Frequency Electrosurgical Generator Unit
Application of Use
Human/Veterinary Surgery
General Surgery; Gastroenterology, Dermatology;
Vascular Surgery; Obstetrics and Gynecology；
Heart/Thoracic Surgery; ORL/ENT;
Minimally Invasive Surgery(MSI)；Cerebral surgery;
Neurosurgery, Orthopedics & Plastic Surgery;
Trans Urethral Resection (TUR) and etc.
Technical Features
Brand
Ahanvos
Item Name
High Frequency Electrosurgical Generator
Material
Stainless Steel
Main Frequency
512KHz
Max Output Power
300W
Application
Human/Veterinary Surgery
Power Supply
100~240V/50~60Hz
High Frequency Leaekag
Mono＜150mA;Bip＜60mA
Power readouts
within ±20% or 5W
Certificate
CE ISO
Working Mode
Max.output power
Bipolar Cut
Bipolar Cut
120W
Bipolar Coag
Standard Coag
150W
Seal Safe
300W
Endo Safe
100W
Monopolar Cut
Pure
300W
Blend 1
250W
Blend 2
200W
Blend 3
150W
Monopolar Coag
Fulgurat
120W
Spray
100W

  • Intelligent Device System

Microprocessor controlled with a wide TFT LCD Touch Screen, clean image quality. The settings and working modes of operation are changed by touching icons on the screen, ensures the users with easy access to all functions, satisfying all the surgeries demands with safety, flexibility, reliability and convenience.
Characteristics Equipment are designed for conventional Electrosurgical procedures with the ability to automatically adjust, designed for various operations.
Activation Designed to perform cutting and coagulation during surgical procedures, output activated by Handswitch or Footswitch REM(Return Electrode Monitoring) Return electrode (for Monopolar) with quality monitoring system(REM). This REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, at the same time with Audible and Visual Alarms, as well as real-time dynamic display of the contact quality on the screen between the negative plate and the patient’s skin.
Automatic self-test When switch on the machine, it will start automatically self-test routine prior to operation.
Real-time Monitoring and Instance Response System for Tissue Density This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.
Monopolar Cut -Multi Monopolar outlet, 3-pin (4mm) outlets and Laparoscopic Microphone head (4mm, 8mm ) outlet -Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect Monopolar Coagulation -Different coagulation modes provides precise, moderate, enhanced, contact-less coagulation effects -Possibility of argon plasma coagulation Bipolar -Cut with different levels of haemostasis, urological cutting and etc -Coagulation with Forceps for contact coagulation without sparking Automatic Start /Stop Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control for the operation. TURP Functions Both workable under Monopolar and Bipolar operating modes This mode is used in under water environment for surgery especial Resectoscopy, which removes the tissue in theprostate with kinetic plasma under saline liquid. Ligasure Vessel Sealing (Seal-Safe) With Bi-clamp or other instruments, enables permanent sealing up large blood vessels up to 7mm diameter under Seal-Safe working modes during open and lapaorscopic surgeries. Endoscopic Vessel Sealing (Endo-Safe) With Ligasure handles, enables permanent sealing up large blood vessels up to 7mm diameter under Endo-Safe working modes during Laparoscopic surgeries
Memory Records Features Memory program that allows customize settings for different interventions and surgeons.
Upgrade Interface USB/RS232 interface available to connect with computer, which allows remote problem detect as well as further software upgrade. Compatible with other Equipment Argon gas module. Optimum Smoke Evacuation System
Multilanguage Available Language options: English, Spanish, Portuguese, Turkish and etc.
Packing and Delivery
Company Profile
Beijing Jinhengwei Technology development Co.,Ltd (Brand "AHANVOS”)  is professional manufacturer in the design,research and development of Electrosurgical Generator and accessories.

Main products:HV-300 series and HV-400 series High Frequency Electrosurgical units and accessories such as:Monopolar ESU pencil,Monopolar ESU plate and cable;Two Button Footswitch,  Bipolar Forceps and cable and etc,also the Smoke Evacuator for the Leep surgery.

Our company established in 2000,we have one team of experienced technical staffs and professors in this field,which makes our products passed by European CE0434,ISO 13485 and ISO 9001. AHANVOS is dedicated to provide the best quality and reliable machine to the customers,our aim is to become one of the leading manufacturers for Electrosurgical unit.
Machine Commissioning
FAQ

Q: Are you a factory or a trading company ? A: We are a Chinese medical equipment manufacturer, All the products are made by us. Q: Can you accept OEM ? A: YES! We offer "Ahanvos" brand to you, But if you need we can also offer OEM service. Q: Which ares are your products usually sold to ? A: Our products usually exported to North America, South America, The Middle East, South-east, Asia, Europe and so on. Q: What's your delivery time ? A: Quantity below 10sets, the delivery time will be in 1 week. Q: Where are you ? A: Our address is Room NO.501 , 5/F Building, NO.27 YongWang Road, Daxing biomedical industrial base, Zhongguancun Science Park, Daxing District, Beijing, China.
