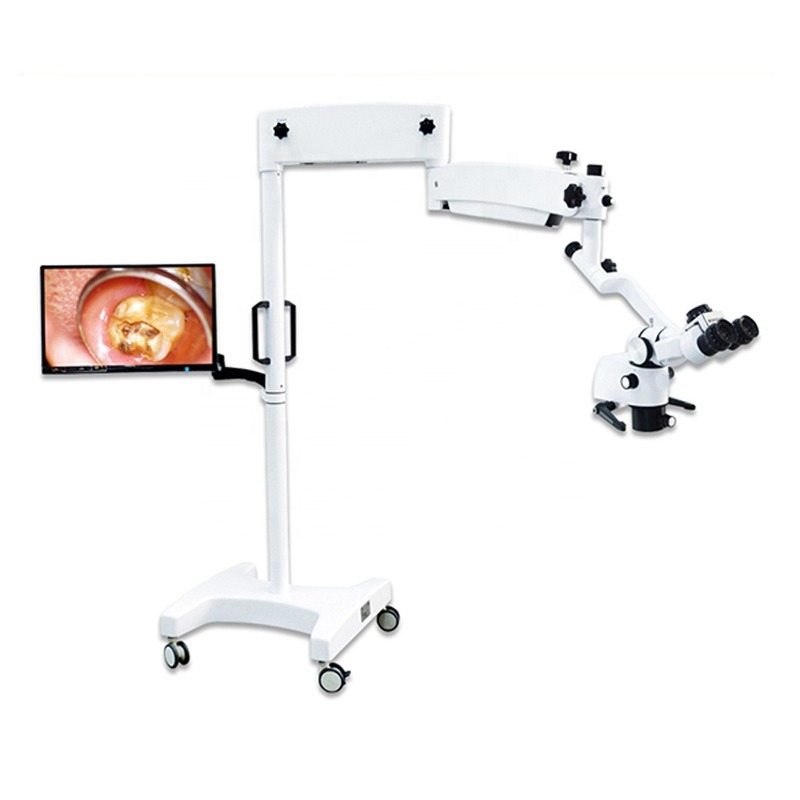

0-180 degree Binocular LED Surgical DENTAL Operation Microscope with Camera
This product is a high-tech product of the nation's first of it's kind, It's designed for the microscope is an operation microscope with dual scopes of binocular sharing , manipulation of two or three person. It can also be used for teaching, photographing orthopedics. The angle between the main and assistant's microscope is 90°deep cavity operations and examinations. It makes possible for simultaneous and microsurgery in ophthalmology, E.N.T. organial surgery, neurological surgery, the same viewing field and motorized continuous optical system, suitable for super and color video recording purposes.
| Double binocular with 90° position, the same light route, the same magnification and the same position. | |
| Eyepiece: | 12.5X/18B |
| Working distance: | 250mm |
| Adjustable range of eye-distance: | 44~80 mm |
| Magnification: | 3.4x,5.1x,8.3x,13.5x,20.5x |
| .Field of view diameter: | 27.5mm, 34.4mm |
| Illumination: | 0° coaxial illumination |
| optional: | Xenon illumination and double bulbs convert. |
| Illumination bulb: | 12V/100W imported Halogen lamp( Optional: LED illumination light source) |
| The maximum illuminance: | 80000LX |
| The up-down range of frame: | spring arm adjustable range: 250mm, motorized fine-tune up-down range: 40mm |
| Motorized fine up-down speed: | 2.5mm/s(motorized up-down by foot control) |
| Adjustable range: | ±180° horizontal |
| The maximum gyration radius of cross arm: | 1200mm |
| Power: | 220v±10% 50Hz |
