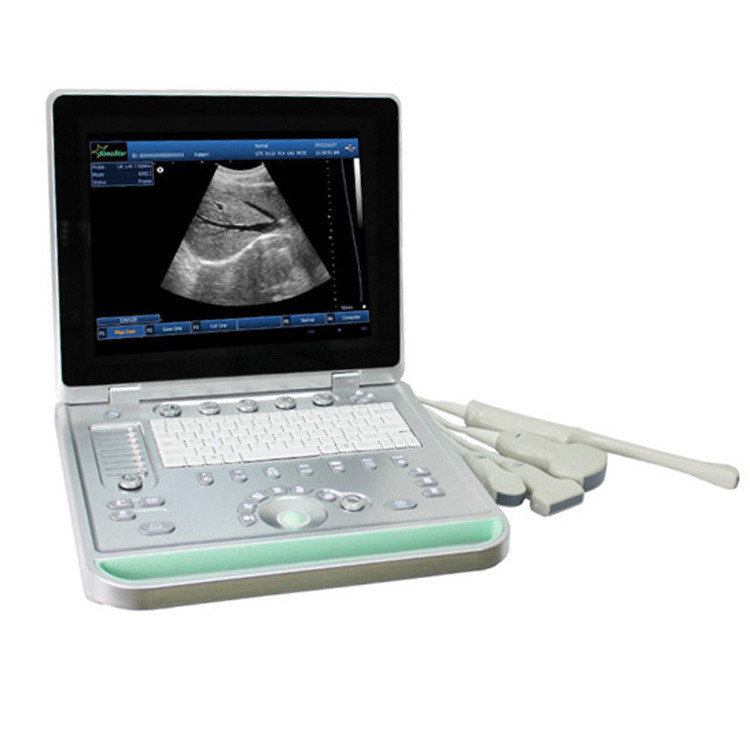

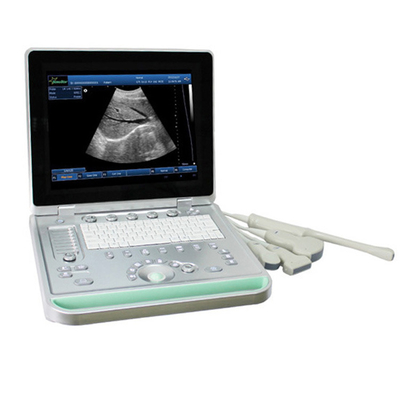

Laptop Fully Digital Ultrasound Scanner
Model: MCB-SS-9
Feature:
-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Multilingual(English, French, German, Spanish and so on)
-Good aluminum trunk packing
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram
M mode: heart rate, time, distance, slope and stenosis
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary
Obstetric: gestation age, fetal weight, AFI
Cardiology: LV, LV function, LVPW, RVAWT
Urology: transition zone volume, bladder volume, RUV, prostate, kidney
Small parts: optic, thyroid, jaw and face.
Veterinary: Cattle: BPD, CRL, TD; Horse: GA, Dog: GS, Cat: HD, BD, Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(optional): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED touch screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg
Standard Configuration:
One main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk.
Optional:
Linear, Trans-vaginal, Micro-convex, Rectal Probe, 3D image function, Bag,Trolley, Laser Printer.
We provide different kinds of Doppler ultrasound machines and accessories of Doppler ultrasound machines. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.
We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc
