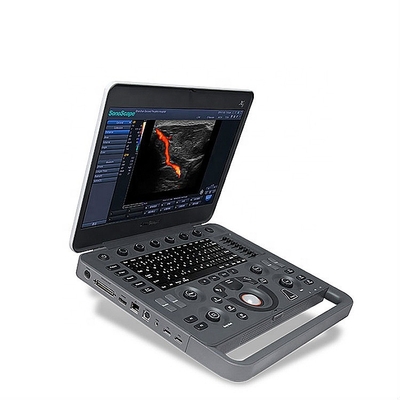

Sonoscape X3V Vet laptop style color Doppler ultrasound system veterinary ultrasound
SonoScape’s laptop style color Doppler ultrasound system is designed as the go to ultrasound in any setting. Due to its small size, light weight and impressive durability the X3V is at home anywhere, at the bedside or abroad in the field. Packed with user friendly image enhancement technology inside this small laptop system makes it the ideal system for use at anytime.
Mobility
15.6 inch wide range folding angle and wide viewing angle high definition monitor
Extended connector to 3 probes
Quick boot up time
Built-in battery support 90 mins continuous scanning
Integrated trolley with height adjustment
Wi-Fi and Bluetooth wireless connection
User Friendly
One Button automatic optimization
Large image display region
Anti-reflective screen and auto brightness adjustment
User-defined Operations
Extensive Applications
Crystal clear imaging quality with professional transducers makes X5V ideal for various applications.
Sonoscape S6V full digital color doppler vet ultrasound scanner veterinary ultrasound
The S6V is a multi-functional hand carried Color Doppler ultrasound system which can be widely used in clinical practice. SonoScape developed this system to satisfy a variety of clinical requirements such as Radiology, Cardiology, OB/GYN, vascular and small parts. With the help of powerful software packages, professional transducers, a built-in battery and other user-friendly designs, the S6V makes it possible for doctors to serve patients anywhere and anytime without compromise.
15 inch LCD monitor
CFM, DPI, PW, HPRF, CW
One button image optimization: M-Tuning
Tissue Harmonic Imaging, Compound Imaging, Trapezoidal Imaging and standard Freehand 3D Imaging
Intuitive interface and user-friendly control panel
Lightweight, built-in Li-ion battery supports continuous scanning for more than one hour without power supply
2 universal sockets for quick switch during scanning
Optional socket extender, allows the S6 to connect with 3 transducers at the same time
2 USB 2.0 ports and DICOM 3.0 port, S-video and VGA ports
USB based software upgrade
The S6V is a comprehensive imaging system engineered to meet today's most demanding needs
Radiology
The S6V can provide professional services for 2B, 4B, CFM, DPI and PW. The Panoramic imaging technology can provide an extended field of view. By gradually moving the probe laterally across the anatomy, a series of images are stitched together to show one continuous image which is wider than the scanning width of the probe, offering a larger reference image for documentation of spatial relationship between structures. A wide range of transducers can be used, including high density linear and convex, L-shape surgical probe etc.
Sono SonoScape color doppler portable ultrasound machineScape color doppler portable ultrasound machine
OB/GYN
--Freehand 3D imaging;
--200 degrees wide range trans-vaginal transducer with temperature detection
--Professional and abundant OB/GYN measurement software
SonoScape color doppler portable ultrasound machine
Cardiovascular
Provides professional services for color M, CFM, PW, CW, Stear M mode, TDI etc. A wide range of transducers can be used, including high frequency linear, high and low frequency phased array and micro-convex array. The S6V also has professional and abundant cardiovascular measurement software.
SonoScape color doppler portable ultrasound machine
Urology
SonoScape is in a strong position to maintain a reliable production capacity of transducers. We can meet any demand from the customers. Our Trans-rectal transducers and Biplane transducers are of high quality.
Emerging Applications
The S6V also shows excellent performance in emerging applications, including supporting emergency, ICU/CCU, and anesthesia applications. The imaging technologies used in the S6V will provide you with exceptional imaging quality in both near and far fields, greatly improving resolution and penetration for greater diagnostic confidence. The S6V is compatible with SonoScape’s high frequency linear transducer, that can reach up to 16MHZ. Biopsy guide is also configured.
Others
MSK/Sports medicine, Breast, Angiology and Vascular, etc.
YSB5600V Pregnant Rectal probe portable scanner pig ultrasound veterinary ultrasound
Parameter:
10.4' high resolution color LED backlight display, with high contrast and wide viewing angle
Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
Two probe sockets, auto-identify different optional probe
Body marks:total 64 kinds body marks indicating probe position
Display mode:B,2B,4B ,B/M,M
Adjustable depth: 10 grades, max depth to 236mm
Contrast:27~90dB
Gray scale:256
8 steps intelligent TGC
Frame frequency: 30 frames /second
8 kinds pseudo colors
Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off
Cine loop:256 frames
Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
The gravel software package with real-time position line measurement
Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement
OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report
Urology measurement and analysis: residual urine volumem, prostate volume, and urology report
Dual TV output: PAL/NTSC, can connect video printer when necessary
Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz
Power supply adaptor output: DC12.8V 3.0A
Main unit weight:4.5kg(without accessories)
Main unit dimension:256×150×326mm(L×W×H)
Main basic configuration:
1. Main unit
2. 3.5MHz convex probe
Optional parts:
1. 6.5MHz multi-frequency trans-vaginal probe
2. 7.5MHz multi-frequency linear probe
3. Li-battery
4. Trolley
5. Charger
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
