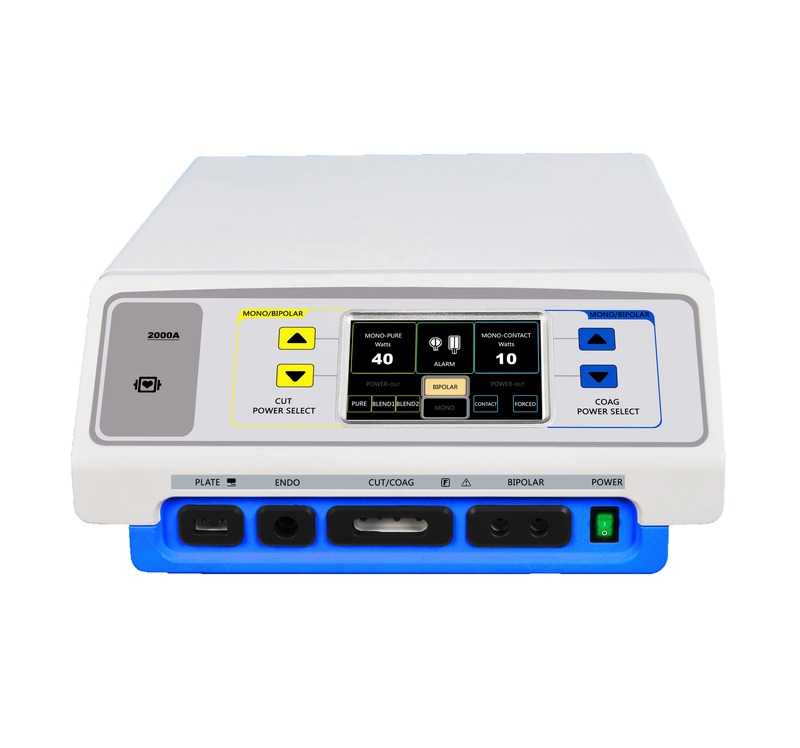

Metal LCD Screen Max 300W Electrosurgical Cautery Unit

1.0 Sets
MOQ
Metal LCD Screen Max 300W Electrosurgical Cautery Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ESU-2000A
Power Source: Electric
Warranty: 2 Years
After-sale Service: Online Technical Support
Material: Metal, Plastic
Shelf Life: 2 Years
Quality Certification: ISO13485
Instrument Classification: Class II
Safety Standard: Others
Product Name: LCD Screen Max 300W Electrosurgical Cautery Unit
Power: 220V±22V, 50Hz±1Hz (110V±11V, 50/60Hz)
Operating Frequency: 512KHz
Power Rating: 1100VA±10%
Power Consumption: ≤1100VA
Working Modes: Monopolar Cut, Monopolar Coag,Bipolar
Screen Display: LCD
Pencil Remoting Output: YES
Certificate: ISO 13485
Basic Infomation
Certification: ISO13485, ISO 13485
Model Number: ESU-2000A
Payment & Shipping Terms
Product Description
Product Description
LCD Screen Max 300W Electrosurgical Cautery Unit

01. Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
02. Seven working modes: pure cut, blend1, blend2, contact coag, forced coag, bipolar coag, bipolar cut.
03. Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology,urology(under water TUR), oncology, neurosurgery, etc.
04. Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of out putting.
05. Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
06. Both hand and foot controlled.
07. Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
08. The unit always remember the last setting when it turned off.
09. Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10. The ESU unit can be connected with laparoscope and endoscope, etc.
11. Protection against over-voltage and over-current.
12. Defibrillation protected.
13. Convection refrigeration without ventilator.
14. Mounted on 4 wheels cart(optional).
15. Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications
Power
220V±22V, 50Hz±1Hz (110V±11V, 50/60Hz)
Operating Frequency
512KHz
Power Rating
1100VA±10%




Nine Working Modes
Monopolar Cut
a) Pure cut: 1W~300W (Load 800Ω)
b) Blend1: 1W~200W (Load 800Ω)
c) Blend2: 1W~250W (Load 800Ω)

Monopolar Coag
d) Spray Coag: 1W~80W (Load 800Ω)
e) Soft Coag: 1W~120W (Load 800Ω)

Bipolar
f) Bipolar Coagulation: 1W~70W (Load 200Ω)
g) Bipolar Cut: 1W~120W (Load 200Ω)
Power Consumption
≤1100VA
Configuration Sheet
Electrosurgical Pencil
5PCS
Electrosurgical Pad
10PCS
Electrosurgical pad cable
1PC
Footswitch
1SET
Bipolar Forceps with cable
1PC
Bipolar Forceps
1PC
